KY02111

• CAT Number: I000457
• CAS Number: 1118807-13-8
• Molecular Formula: C₁₈H₁₇ClN₂O₃S
• Molecular Weight: 376.86
• Purity: ≥95%

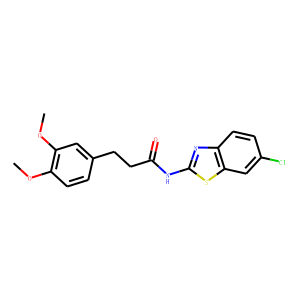

• Synonyms: N-(6-chloro-1,3-benzothiazol-2-yl)-3-(3,4-dimethoxyphenyl)propanamide
• Target: Wnt/β-catenin
• Solubility: DMSO 75 mg/ml; water <1 mg/ml
• Storage: 3 years -20C powder
• InChI: InChI=1S/C18H17ClN2O3S/c1-23-14-7-3-11(9-15(14)24-2)4-8-17(22)21-18-20-13-6-5-12(19)10-16(13)25-18/h3,5-7,9-10H,4,8H2,1-2H3,(H,20,21,22)
• InChIKey: LXFKEVQQSKQXPR-UHFFFAOYSA-N
• SMILES: COC1=C(C=C(C=C1)CCC(=O)NC2=NC3=C(S2)C=C(C=C3)Cl)OC

KY02111 is a small molecule which can promote differentiation of hPSCs to cardiomyocytes.IC50 value:Target: Wnt signaling inhibitorKY02111 Induces downregulation of Wnt signaling target genes; inhibits canonical Wnt signaling in a manner distinct from other known Wnt inhibitors.KY02111 (10 μM) increases the ratio of beating cardiac colonies as much as 70%-94% in cell aggregates of two hESC lines (KhES-1 and KhES-3), four hiPSC lines (253G1, IMR90-1, IMR90-4, and RCHIPC0003), and a mouse ESC line (R1). KY02111 (10 μM) results in 73%-85% postive IMR90-1 hiPSCs expressing the cardiac markers, cardiac troponin T (cTnT), αActinin, or NKX2.5, whereas only a few DMSO-treated cells are positive for the markers. KY02111 (10 μM) results in 16% postive IMR90-1 hiPSCs expressing the cardiac pacemaker marker, HCN4, whereas the ratio of Vimentin-positive cells (fibroblasts) decreases 3.3-fold. KY02111-induced cardiomyocytes (KY-CMs) expresses the cardiac markers, αMHC, NKH2.5, and HCN4, and that all of the ion channel genes examined are expressed at levels similar to those of adult heart tissue. KY02111 (10 μM) downregulates the expression of 72.7% target genes of canonical WNT signaling in IMR90-1 hiPSCs, suggesting that KY02111 inhibits canonical WNT signaling in hPSCs. KY02111 (10 μM) clearly reduces luciferase activities in both IMR90-1 hiPSCs and HEK293 cells in a dose-dependent manner in the TOPflash assay. KY02111 (10 μM-25 μM) increases cardiac differentiation about 80-fold in transgenic monkey ESCs compared to the control and does not show toxicity to cells even at high concentration. KY02111 (10 μM) significantly reduces luciferase activity in the TOPflash assay in SW480 cells, whereas XAV939 and IWP-2 does not. KY02111 (10 μM) dramatically reduces luciferase activity induced by GSK3β inhibitor BIO in SW480 cells, compared to that of XAV939 and IWP-2. KY02111 alone produces approximately 80% cTnT-positive cells, KY02111 in combination with other WNT inhibitors does not significantly increase differentiation efficiency, which shows that KY02111 effectively produces a high proportion of functional cardiomyocytes from hPSCs [1].

Reference

[1]. Minami I, et al. A small molecule that promotes cardiac differentiation of human pluripotent stem cells under defined, cytokine- and xeno-free conditions. Cell Rep. 2012 Nov 29;2(5):1448-60.
Abstract
Human pluripotent stem cells (hPSCs), including embryonic stem cells and induced pluripotent stem cells, are potentially useful in regenerative therapies for heart disease. For medical applications, clinical-grade cardiac cells must be produced from hPSCs in a defined, cost-effective manner. Cell-based screening led to the discovery of KY02111, a small molecule that promotes differentiation of hPSCs to cardiomyocytes. Although the direct target of KY02111 remains unknown, results of the present study suggest that KY02111 promotes differentiation by inhibiting WNT signaling in hPSCs but in a manner that is distinct from that of previously studied WNT inhibitors. Combined use of KY02111 and WNT signaling modulators produced robust cardiac differentiation of hPSCs in a xeno-free, defined medium, devoid of serum and any kind of recombinant cytokines and hormones, such as BMP4, Activin A, or insulin. The methodology has potential as a means for the practical production of human cardiomyocytes for regeneration therapies.
